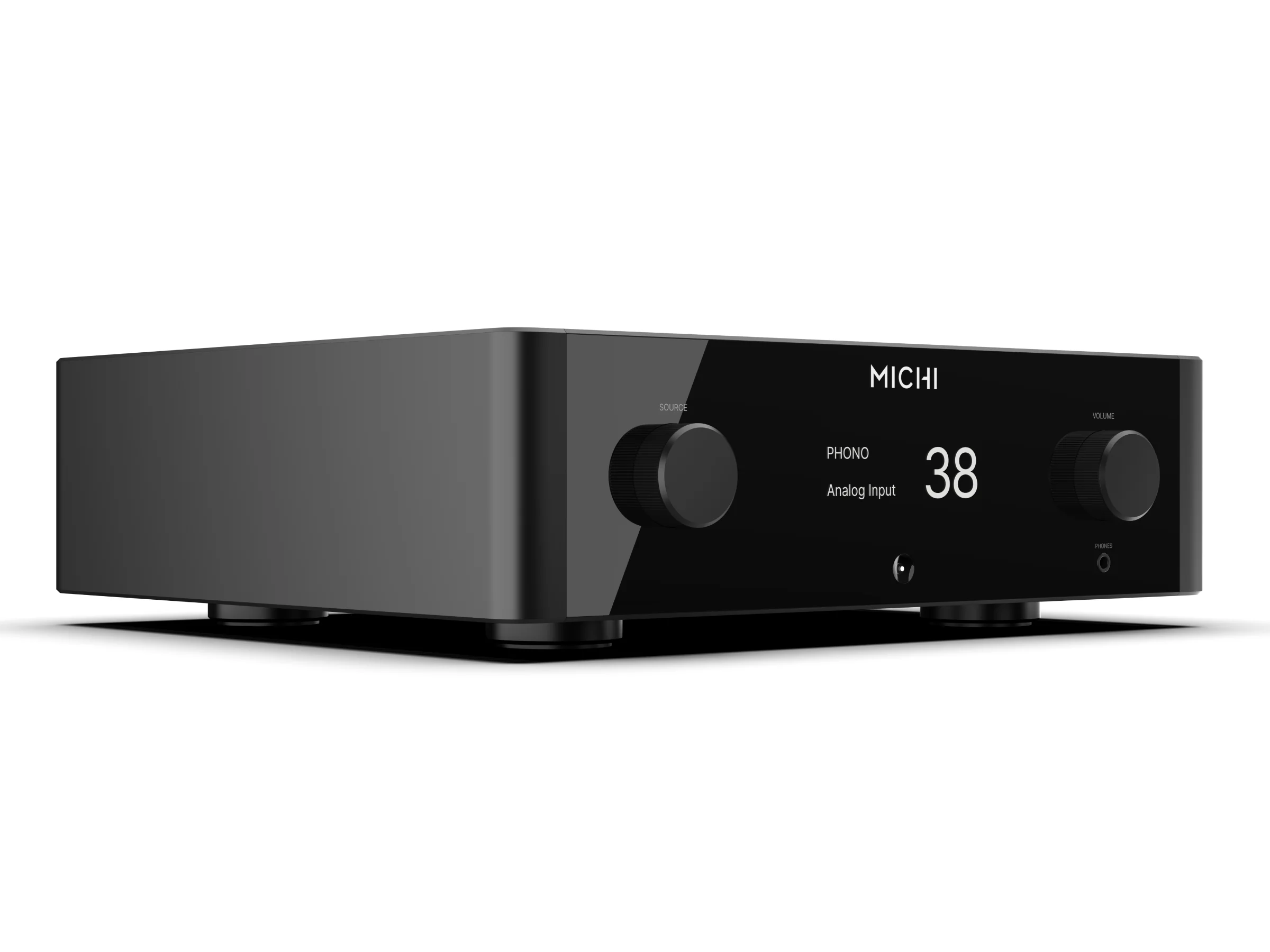

Rotel MICHI X3 Series 2 Integrated Amplifier
The Michi X3 Series 2 Integrated Amplifier offers an unparalleled listening experience with musical refinement and breathtaking detail. Digital audio is rendered utilizing a precision 8-channel ESS SABRE ES9028PRO DAC configured to dedicate 4 channels each to the left and right recorded tracks lowering the noise floor, reducing distortion, and creating an expansive, wide soundstage.
The elegant industrial design of the Michi X3 Series 2 fits comfortably in any living space while still producing a robust 350 watts from your favourite music sources including Analog RCA and XLR Balanced, Moving Magnet Phono, aptX™ HD Wireless Bluetooth, Coaxial, Optical. The PC-USB input supports PCM (32-bit 384kHz) and Quad DSD (11.2MHz) music files with full MQA hardware decoding up to 24-bit 384kHz.
The Michi X3 Series 2 is built for music lovers and audiophiles alike with every aspect of its design, engineering, and manufacturing meticulously refined to deliver exceptional performance. An oversized in-house manufactured toroidal transformer powers isolated digital, analogue, and high current amplifier circuits further reducing electrical noise and interference.
Specifications
| Maximum Power Output: | 350 watts per channel (4 ohms) |
| Continuous Power Output: | 200 watts per channel (8 ohms) |
| Total Harmonic Distortion: | <0.008% |
| Intermodulation Distortion: | <0.03% |
| Frequency Response – Phono Input: | 20 Hz – 20 kHz (+0 dB, +0.4 dB) |
| Frequency Response – Line Inputs: | 10 Hz – 100 kHz (+0 dB) |
| Damping Factor: | 350 (20 Hz – 20 kHz, 8 ohms) |
| Input Sensitivity – Phono (MM): | 60 mV |
| Input Sensitivity – Line (RCA): | 3.5 V |
| Input Sensitivity – Line (XLR): | 5.5 V |
| Input Overload – Phono (MM): | 60 mV |
| Input Overload – Line (RCA): | 3.5 V |
| Input Overload – Line (XLR): | 5.5 V |
| Preamplifier Output Level / Impedance: | 1.9 V / 100 ohms |
| Tone Control – Bass: | ±10 dB at 100 Hz |
| Tone Control – Treble: | ±10 dB at 10 kHz |
| Signal-to-Noise Ratio – Phono: | 80 dB (IHF “A” weighted) |
| Signal-to-Noise Ratio – Line: | 102 dB (IHF “A” weighted) |
| Channel Separation – Phono: | >55 dB |
| Channel Separation – Line: | >55 dB |
| Digital Frequency Response: | 20 Hz – 20 kHz (0 ±0.4 dB) |
| Digital Signal-to-Noise Ratio: | 102 dB (IHF “A” weighted) |
| Digital Input Sensitivity / Impedance: | 0 dBFS / 75 ohms |
| Preamplifier Output Level (Digital): | 1.3 V (at –20 dB volume position) |
| Supported Digital Signals: | SPDIF LPCM (up to 192 kHz / 24-bit) |
| PC-USB Support: | USB Audio Class 1.0 (up to 96 kHz / 24-bit); USB Audio Class 2.0 (up to 384 kHz / 24-bit)* |
| Additional Digital Support: | DSD, DoP, MQA, MQA Studio, Roon Tested (*driver installation required) |
| Power Requirements – Europe: | 230 V, 50 Hz |
| Power Requirements – USA: | 120 V, 60 Hz |
| Power Consumption: | 500 W |
| Standby Power – Normal: | <0.5 W |
| Standby Power – Network Wakeup: | <2 W |
| BTU Rating: | 1303 BTU/h (4 ohms, 1/8 power) |
| Dimensions (W × H × D): | 485 × 150 × 452 mm (19 × 6 × 17 3/4 in) |
| Front Panel Height: | 132 mm (5 1/4 in) |
| Weight (Net): | 28.9 kg (63.7 lb) |
| Finish: | Black |
