Pro-Ject Align it DS3

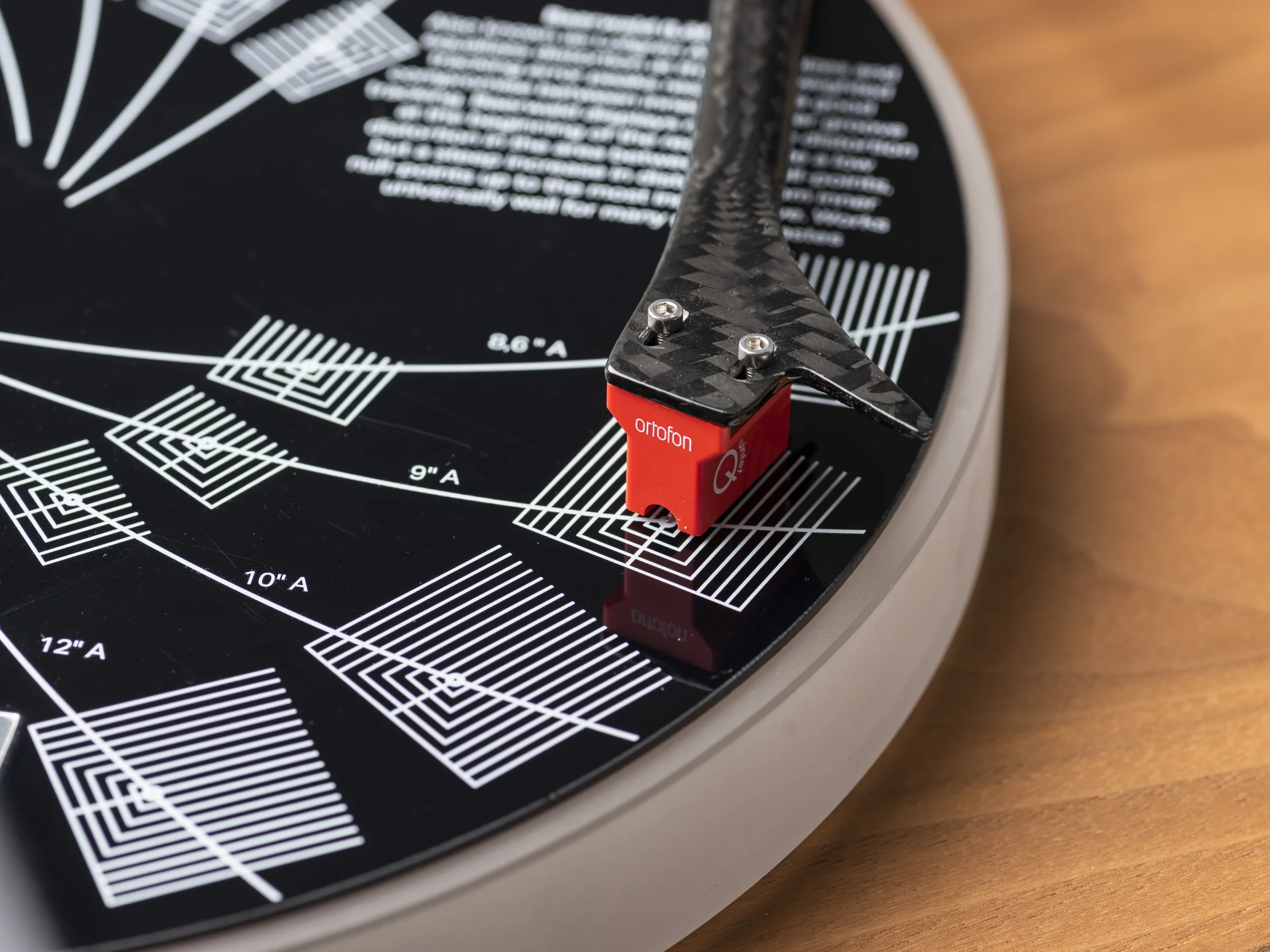

Different to many other alignment protractors the Pro-Ject Align it DS3 traces the whole path of the tonearm from the outer to the inner null-point. This is great for beginners and professionals alike, as it makes alignment much more comfortable. You do not need to constantly rotate your turntableâs platter when going from the outer to inner null-point while aligning your cartridge. The Align it DS3 stays fixed in position and you do not need to worry about getting the position right each time. This is the advantage of tracing the whole tonearm arc on the protractor.
Features
- Suitable for all Pro-Ject turntables
- All adjustments on one tool: Overhang, azimuth and tangentialityÂ
- 3 different geometries: Baerwald, Löfgren B, Stevenson
- Alignment curves for 8,6â, 9â, 10â and 12â tonearms
- Suitable for other manufacturerâs tonearms*Â Detailed alignment instructions and guidance on how to choose the geometry that suits your listening habits most!
- Made in Europe
Choose one of the 3 most popular alignment geometries printed on the Align it DS3. Each geometry has different advantages:
Baerwald
Excellent allrounder that many people choose to start their alignment journey with. Optimises tracking of inner and outer groove with a focus on the middle area of your vinyl record. Works universally well for many musical tastes.
Lofgren B
Maximises tracking in the middle area of your vinyl record, resulting in the lowest average distortion between the null-points of all three alignment curves. The most inner and outer grooves exhibit more tracking error than the middle of your record, which makes Lofgren B great for modern records where all the most important music and songs are in the middle of the record.
Stevenson
Maximises tracking at the start and very end of the record by moving the outer null-point more towards the outside and the inner null-point towards the inside. Great for classical music that finishes in big climactic finales, very long records with 25 minutes or more per side and 45 RPM singles.
Align it DS3 is suitable for all Pro-Ject turntables and many other manufacturerâs turntables and tonearms depending on their pivot to spindle distance.
Specifications
| Material: | Acrylic |
| Thickness: | 2 mm |
| Geometries: | Baerwald, Löfgren B, Stevenson |
| Suitable for tonearms with the following pivot to spindle distance: | |
| - 200 mm: | Used on Pro-Ject 8.6â tonearms |
| - 212 mm: | Used on Pro-Ject 9â tonearms |
| - 238 mm: | Used on Pro-Ject 10â tonearms |
| - 291.6 mm: | Used on Pro-Ject 12â tonearms |
