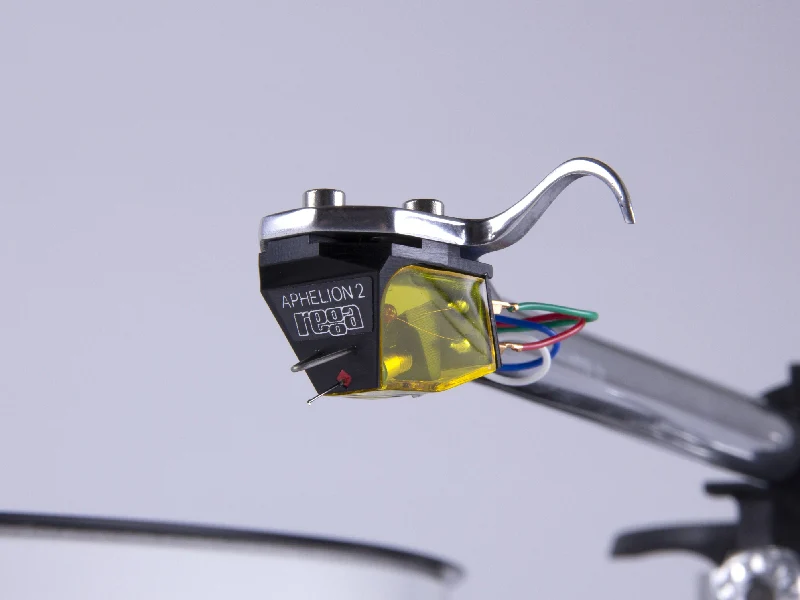

Hand built the Rega Aphelion 2 Moving Coil cartridge is the ultimate in micro  engineering and design. This new cartridge is guaranteed to retrieve more music from your vinyl than ever before.

Features

• Graded zero tolerance black anodised aluminium body
• Boron rod cantilever
• 'Fine Line Type' profile, nude diamond stylus
• Iron micro cross & coil assembly making one of the worlds smallest MC generators.
• Worlds most powerful minaturised neodymium magnet.
• High specification fine wire 0.018mm

Aphelion 2 features an ultra-rigid boron rod cantilever fitted with our most advanced "fine line type" nude diamond profile.  Aphelion 2 uses a super high-powered neodymium magnet and a coil meticulously hand wound on an iron micro cross. The weight reduction of the generator allows us greater freedom to track the vinyl groove ensuring even more detail is extracted from the vinyl. The Aphelion 2 is housed within a single piece, aluminium  black  anodised body and protected by a CAD designed, distinctive yellow rigid cover to protect the internal fine wires, making handling whilst fitting, safe and risk free...



Load settings for adjustable MC stages

• Impedance -100ohm
• Capacitance - 1000pF
• Gain setting - High ('On' position for Rega phono stages )

Specifications

Tracking Pressure:	1.9g
Input Load Impedance:	100 ohms
Output Impedance:	10 ohms
Nominal Output Voltage:	350μV
Channel Balance:	≥ 10μV
Separation:	≥ -29dB
Mass:	6g
