Exposure has been perfecting the art of creating real Hi-Fi for real music lovers since 1974. Designed, engineered and proudly manufactured in Britain by a talented team of audio engineers who are passionate about the reproduction of music.

Features

• Large 200W custom-made toroidal power transformer
• High quality all aluminium casework and extruded front panel
• High quality resistors & capacitors used in the signal path
• Cascode circuitry utilised for improved power supply immunity
• Audio output stages use discrete transistor
• High quality relays used for input selection
• 3.5mm & 1/4” headphone outputs selectable by a switch at the back
• Moving magnet phono input, fixed level AV input and one line level input
• Two coax ( bnc) and two optical inputs and one class 2 USB input with DSD
• 2 pairs of pre-amp outputs for bi-amping or sub woofer
• Remote control

• Three year guarantee

• Available in black or titanium

Exposure's Hi-Fi components are crafted to exacting standards, offering exceptional value. Their design philosophy prioritizes accurate music reproduction across all genres while maintaining a discreet aesthetic. Known for their user-friendliness and ease of maintenance, Exposure's products deliver precise sound quality. These components provide listeners with an outstanding audio experience, characterized by delicate upper ranges, open mid-range, and deep, agile bass, making them an excellent investment for music enthusiasts.

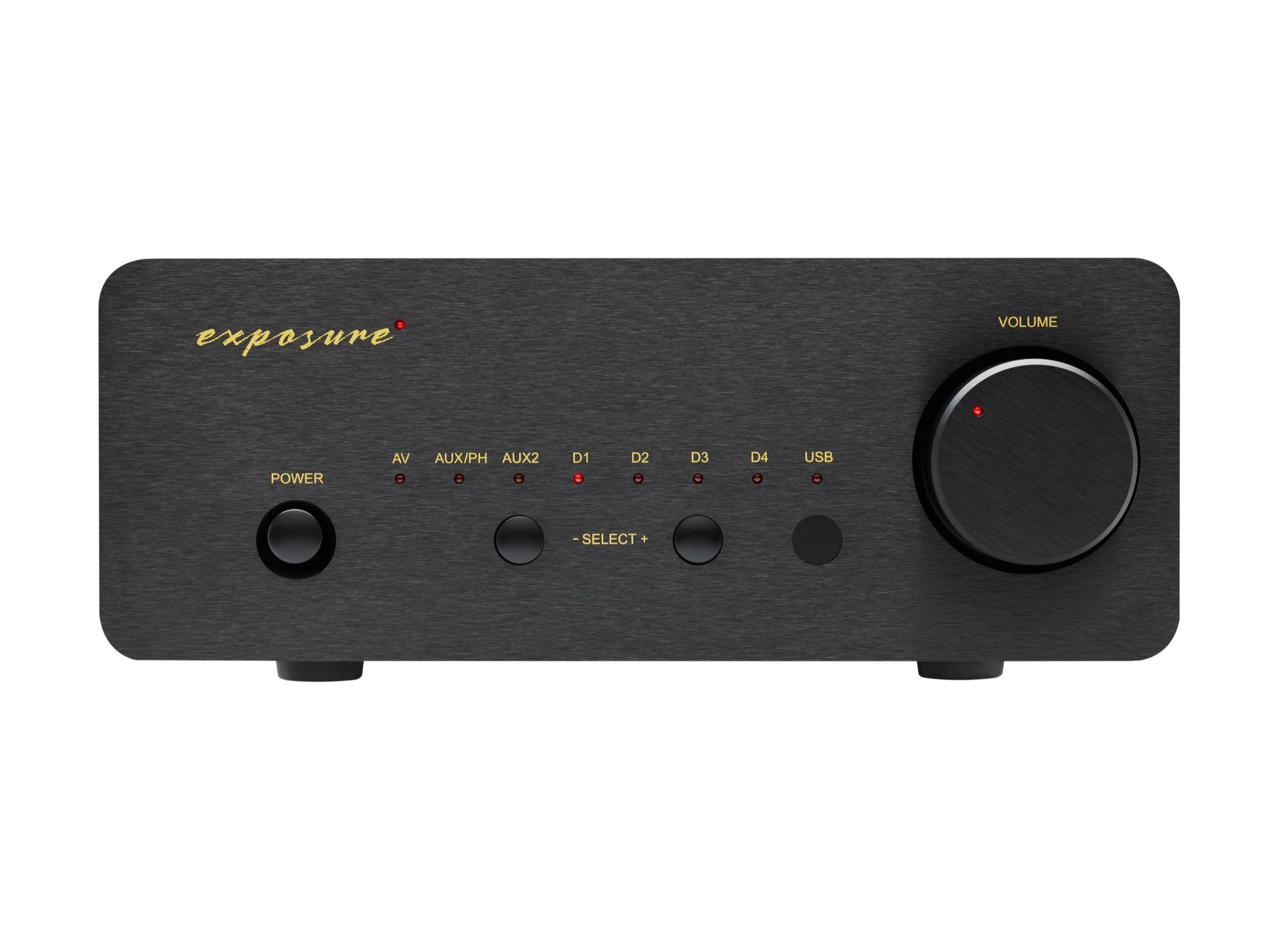

Half Size, Full Power

Housed in a sleek, half-width design, the Exposure XM7 preamplifier features an integrated moving magnet phonostage for your turntable and DAC with five digital inputs. It also offers a fixed gain home theatre input and dual headphone outputs. Additionally, the XM7 includes two preamp outputs for bi-amping capabilities. This half width preamplifier is the perfect match for the Exposure XM9 Mono power amplifiers.

Specifications

Title	Specification
Headphone Output – Output Impedance:	0 Ohms
Headphone Output – Maximum Level Into 33 Ohms:	5V RMS @ 1kHz, 0.1% THD
Headphone Output – Total Harmonic Distortion (33 Ohms):	<0.03% @ 2V output, 1kHz
Headphone Output – Maximum Level Into 330 Ohms:	8V RMS @ 1kHz, 0.1% THD
Headphone Output – Total Harmonic Distortion (330 Ohms):	<0.01% @ 2V output, 1kHz
AV Input Fixed Level:	450mV @ 1kHz, >12k Ohms, S/N >95dB
AUX/PH Input MM – Sensitivity / Impedance / S/N:	2.5mV @ 1kHz, 47k Ohms, S/N >73dB
AUX/PH Input MM – Frequency Response:	±0.5dB 50Hz–20kHz, high-pass roll-off −1.5dB @ 20Hz
AUX 2 Input Line – Sensitivity / Impedance / Gain:	350mV @ 1kHz, >14k Ohms, gain ×3.75 (+11.5dB)
AUX 2 Input Line – Total Harmonic Distortion:	<0.005% @ 1kHz, 1.3V RMS output
AUX 2 Input Line – Frequency Response:	20Hz – 20kHz ±0.5dB
AUX 2 Input Line – Signal To Noise Ratio:	Ref 1.3V RMS output @ 1kHz, >92dB
AUX 2 Input Line – Channel Separation:	>60dB @ 20kHz
SPDIF Inputs (BNC Coax & Optical):	32–192kHz, 16–24 bits
Digital Inputs – Total Harmonic Distortion:	<0.005% @ 1kHz, 1.3V RMS output
Digital Inputs – Signal To Noise Ratio:	Ref 1.3V RMS output @ 1kHz, >98dB
USB Input:	Linear PCM 44.1–192kHz, 16–24 bits; DSD x64 (DoP), asynchronous
Mains Supply:	110/120V or 220/240V, 50/60Hz (factory set)
Fuse:	T5AL for 110/120V units; T2.5AL for 220/240V units
Power Consumption:	25W
Dimensions (HxWxD):	89mm × 218mm × 363mm
Net Weight:	5kg
Gross Weight:	6kg
