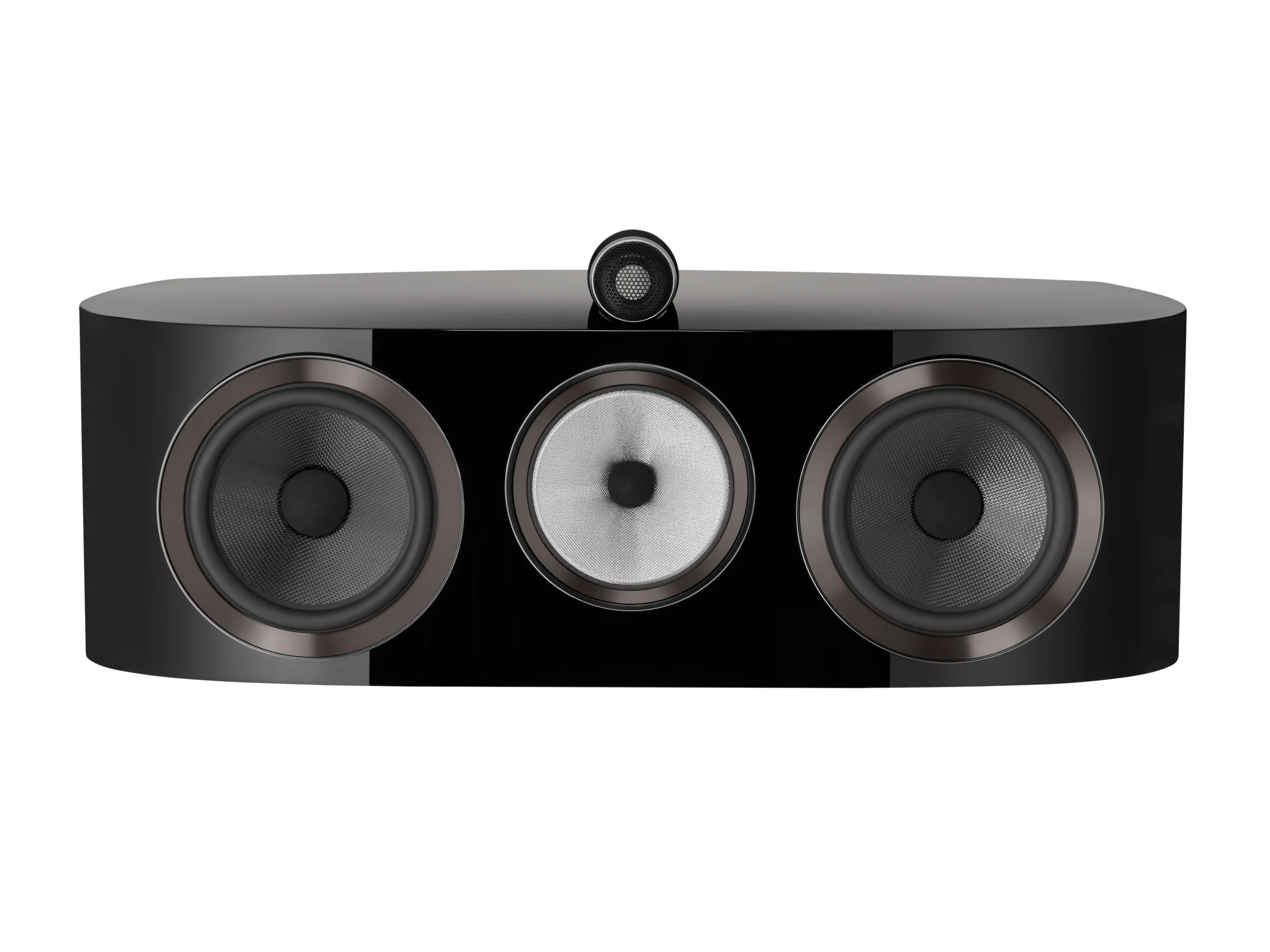

Bowers & Wilkins HTM81 D4 Centre Speaker
Aerofoil Bass Cone
Our Aerofoil bass cone technology remains an outstanding solution to the conundrum of combining low mass and high stiffness in bass cones, thanks to its carbon-fibre skin and variable-profile foam core. Now, we have added the foam Anti-Resonance Plug for lower distortion and even cleaner bass.
Diamond Dome Tweeter
One of our most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond dome tweeter is the perfect combination of low mass, exceptional stiffness and outstanding accuracy. 15 years after we introduced it, we haven’t found a better tweeter dome technology.
Aluminium Bass Pods
HTM81 D4 mounts two Aerofoil bass cones in twin solid aluminium bass pods, each of which is clamped into an aluminium plate fixed to the stiffest part of its curved cabinet. Formed as single pieces of metal, these stiff structures provide the perfect mechanical location for those powerful bass cones.
The Science of Sound
Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond™ so special here.
Specifications
| Features: | 3-way vented-box system |
| Diamond tweeter | |
| Solid body Tweeter-on-Top | |
| Continuum™ cone FST | |
| Anti-Resonance plug | |
| Biomimetic Suspension | |
| Matrix™ | |
| Aerofoil™ cone bass units | |
| Flowport | |
| Drive Units: | 1 x 25 mm (1-in) Diamond dome high-frequency |
| 1 x 150 mm (6-in) Continuum cone FST midrange | |
| 2 x 200 mm (8-in) Aerofoil cone bass units | |
| Frequency Range: | 20 Hz – 35 kHz |
| Frequency Response: | 28 Hz – 28 kHz (+/-3 dB from reference axis) |
| Sensitivity: | 90 dB (on axis at 2.83 V rms at 1 m) |
| Harmonic Distortion: | 2nd + 3rd harmonics (90 dB, 1 m on axis), <1 % 80 Hz – 20 kHz, <0.3 % 100 Hz – 20 kHz |
| Nominal Impedance: | 8 Ω (minimum 3.0 Ω) |
| Recommended Amplifier Power: | 50 W – 500 W into 8 Ω on unclipped programme |
| Max Recommended Cable Impedance: | 0.1 Ω |
| Dimensions (H x W x D): | 334 x 847 x 371 mm |
| Net Weight: | 32.20 kg |
| Finishes: | Gloss Black, with Black Grilles |
| White, with Grey Grilles |
