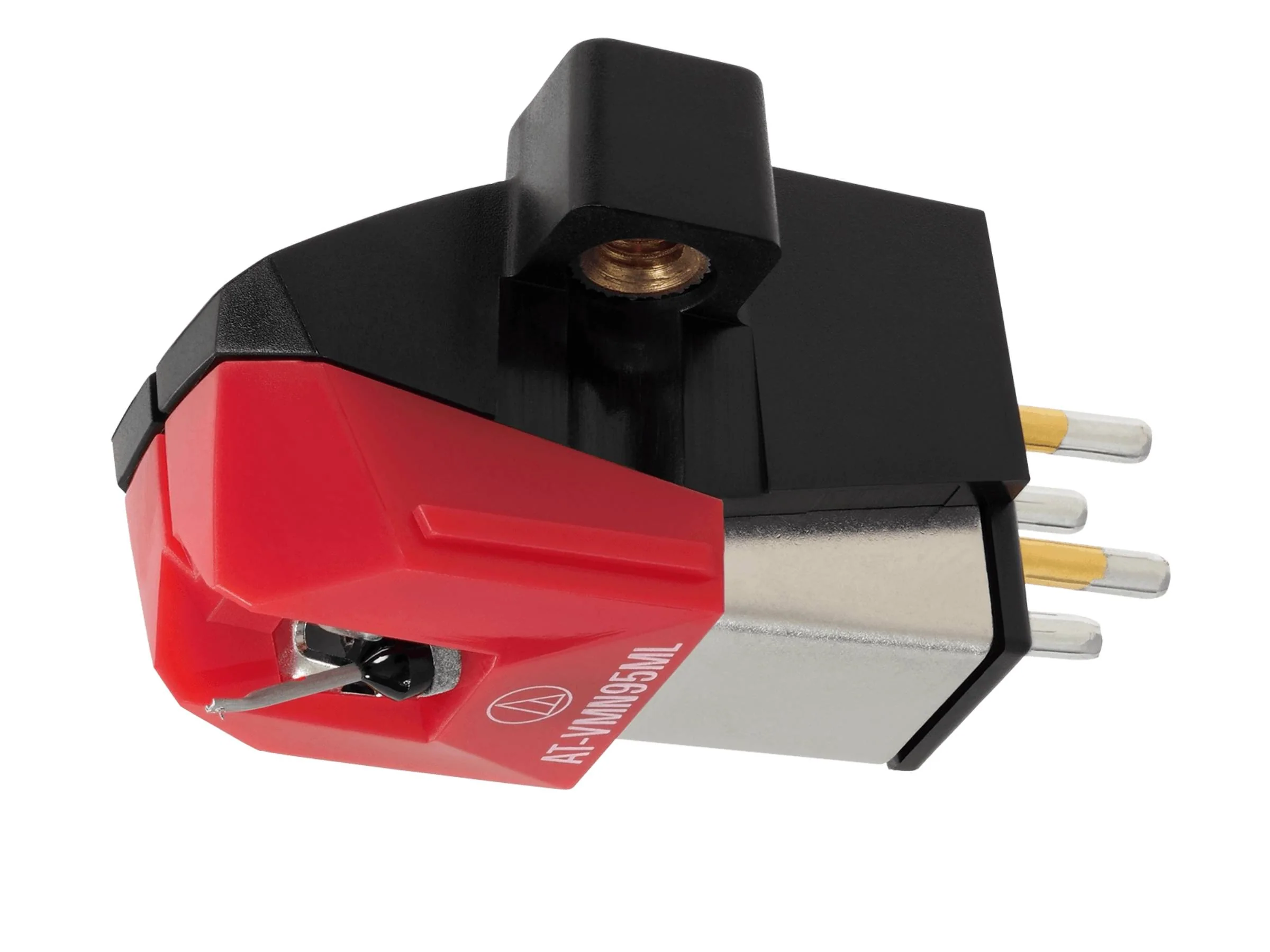

Audio Technica AT-VM95ML Moving Magnet Cartridge
VM95 series Microlinear stereo cartridge
The Audio Technica AT-VM95ML, features a Nude Microlinear diamond, not only the Microlinear stylus will permit to double the duration of your stylus. The performance of a line contact stylus, will minimize the āinner groove distortionā as well as providing extended frequency response and maximize resolution in the medium and high frequencies of the audio program material.
- material. Aluminium cantilever
- 3.5mV output voltage
- Compatible body with all VM95 Series stylus assemblies
- 20 to 25,000Hz frequency response
VM95 Series - Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.
Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.
Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.
- AT-VMN95C
- AT-VMN95E
- AT-VMN95EN
- AT-VMN95ML
- AT-VMN95SH
- AT-VMN95SP
Specifications
| Frequency Response: | 20 - 25,000 Hz |
|---|---|
| Channel Separation: | 23 dB (1 kHz) |
| Vertical Tracking Angle: | 23Ā° |
| Vertical Tracking Force: | 1.8 to 2.2g (2.0g standard) |
| Stylus Construction: | Nude Square Shank |
| Recommended Load Impedance: | 47,000 Ī© |
| Coil Impedance: | 3.3 kĪ© (1 kHz) |
| DC Resistance: | 485 Ī© |
| Coil Inductance: | 550 mH (1 kHz) |
| Output Voltage: | 3.5 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance: | 1.5 dB (1 kHz) |
| Stylus Shape: | Microlinear |
| Cantilever: | Aluminium Pipe |
| Static Compliance: | 20 x 10 ā 6 cm / dyne |
| Dynamic Compliance: | 10 x 10 ā 6 cm / dyne (100 Hz) |
| Mounting: | 1/2ā centres |
| Cartridge Weight: | 6.1g |
| Dimensions: | 17.2 x 18.9 x 28.3 ( H x W x D mm) |
| Accessories Included: | Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver |
| Model: | AT-VM95ML |
| Recommended Load Capacitance: | 100-200 pF |
| Replacement Stylus: | AT-VMN95ML |
| Stylus Size: | 2.2 x 0.12 mil |
| Type: | VM Stereo Dual Magnet |
| Wire Used for Coil: | T.P. Copper |
